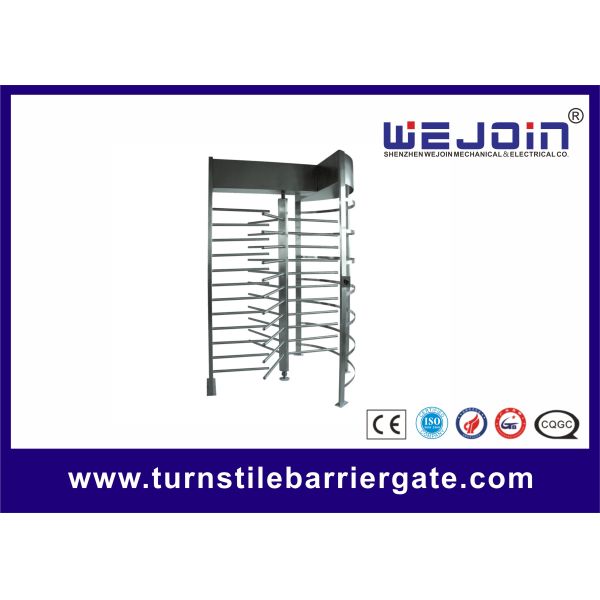

Exhibition Stainless Steel Access Control Turnstile Gate Standard RS485
Access Control Turnstile Gate Features:
1.Access gate mechanic consist by two parts:Frame and Core.Signal reading device would be install on the frame;main parts of core include motor,main board,shift of the controller,fix poles,turnstile supporting,turnstile,protection cover,fence,etc
2.Access direction:single or double direction(optional)
3.Self resetting function the system will cancel the people passing right when reading the card but not passing,the time can be set
4.Prohibiting opposite direction passing
5.Automatic function of opening or closing when power off
6.Direction indicator function,showing passing or prohibiting for the people
7.Control board with counting function,LED digital display function(optional)
8.Control board with memory function,can meet the groups pass through
9.Without time delay require of the control signal thanks to adopt optical hole focus technology
Access Control Turnstile Gate Specifications:
| Model
Item | WJFT601 | WJFT602 | WJFT603 | WJFT610 | WJFT611 | WJFT612 |
| Material of Housing | 201 / 304 Stainless Steel |
| Frequency | 50/60HZ |
| Dimension of Housing
(L×W×H mm) | 1630×1500×2300 | 1400×1200×2300 | 1630×1500×2300 | 2800×1813×2400 | 2150×1260×2300 | 2210×1500×2300 |
| Length of Pole
(out of framework) | 610mm | 470mm | 510mm | 610mm | 470mm | 610mm |
| Net Weight | 170kg | 250kg | 230kg | 650kg | 560kg | 650kg |
| Max Load-bearing of Pole | 80kg | 30kg | 80kg | 80kg | 30kg | 80kg |
| Driving Force of Pole | 3kg |
| Produce Processing | Laser cutting fully controlled by computer |
| Power Supply | 110/220V±10%, |
| Thickness of Housing | 2mm |
| Transmission of Pole | Digital Transmission |
| Light Indicator | Direction indicating |
| Rotating Direction | Single Direction, Double Direction (optional) |
| Working Temperature | 10°C~50°C |
| Communication Interface | Standard RS485 (distance less than 1200m) |
| Input Interface | Dry contact signal or +12V level signal or pulse signal with width more than 100ms DC12V |
| Transit Speed | 30~40 persons/min |
| Working Environment | Indoor / Outdoor (Shelter) |
| Time for Opening | 0.2 second |
| Relative Humidity | ≤90%, no condensation |
Access Control Turnstile Gate Operation Place:
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control
